Modular Silencers with Specifications

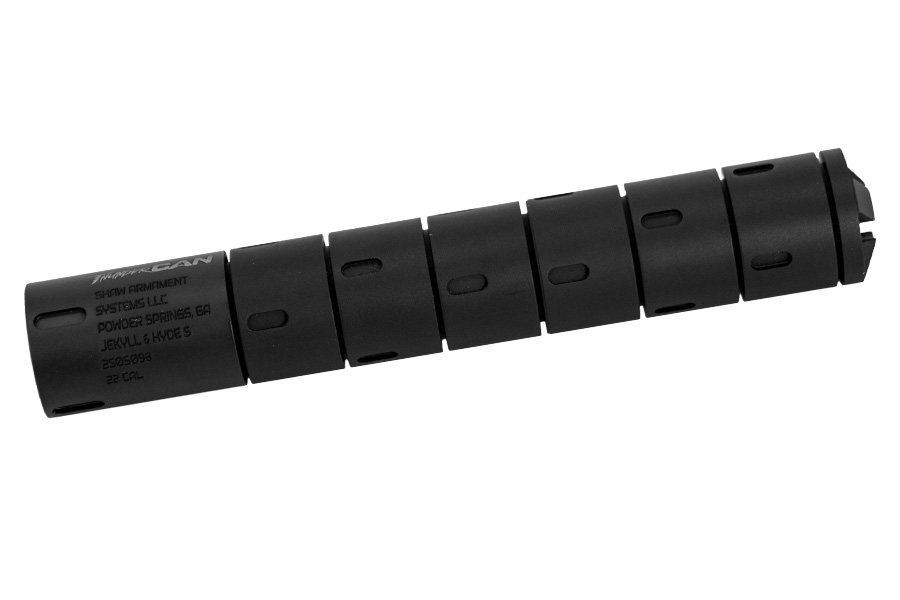

Jekyll & Hyde Small 22/32 Rimfire Modular Suppressors
LENGTH: 6.1 in
DIAMETER: 1.00 in
WEIGHT: 4.6 oz
CALIBER: Small Bore – Rimfire calibers .22 caliber, 5.7x28; Large Bore – Pistol calibers up to .32 diameter, 32 ACP Pressure
MATERIAL CONSTRUCTION: Grade 5 Titanium, 17-4 Stainless Steel, 7075-T6 Aluminum
FINISHES: Black High Temp C Series Cerakote, Black Type III Hardcoat Anodizing
BARREL RESTRICTIONS: Rimfire and Pistol Calibers up to 32 ACP – None, 5.7x28 – 4”
DURABILITY: Limited Full Auto
MOUNTS: Integrated 1/2x28 Direct Thread Mount

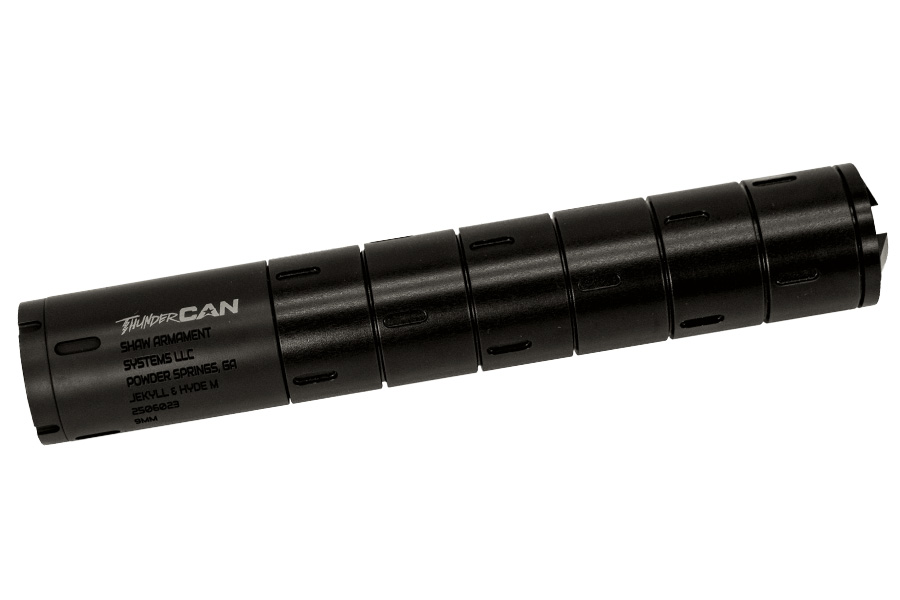

Jekyll & Hyde Medium 9/45 Pistol Modular Suppressors
LENGTH: 8.3 in (no piston)
DIAMETER: 1.36 in
WEIGHT: 10.8 oz (no piston)
CALIBER: Small Bore – Pistol calibers up to 9mm diameter, 300 Blackout Subsonic; Large Bore – Pistol calibers up to .45 diameter, 44 Magnum Pressure
MATERIAL CONSTRUCTION: Grade 5 Titanium, 17-4 Stainless Steel, 7075-T6 Aluminum
FINISHES: Black High Temp C Series Cerakote, Black Type III Hardcoat Anodizing
BARREL RESTRICTIONS: Pistol Calibers – None, 300 Blackout Subsonic – 8”
DURABILITY: Limited Full Auto
MOUNTS: Ships with Booster Assembly, No Piston / 3 Lug and Direct Threads Available
Jekyll & Hyde Large 556/9 Rifle Modular Suppressors
LENGTH: 9.0 in (no mount)
DIAMETER: 1.62 in
WEIGHT: 16.4 oz (no mount)
CALIBER: Small Bore - Up to 6mm diameter, 6mm Creedmoor Pressure; Large Bore – Up to 9mm diameter, 338 Lapua Magnum Pressure
MATERIAL CONSTRUCTION: Grade 5 Titanium and 17-4 Stainless Steel
FINISHES: Satin Bead Blast, DLC
BARREL RESTRICTIONS: 5.56 - 10”, .308 - 14.5”, Large Magnum - 18”
DURABILITY: Limited Full Auto
MOUNTS: HUB Compatible / Ships with 1/2x28 and 5/8x24 Direct Thread Mounts

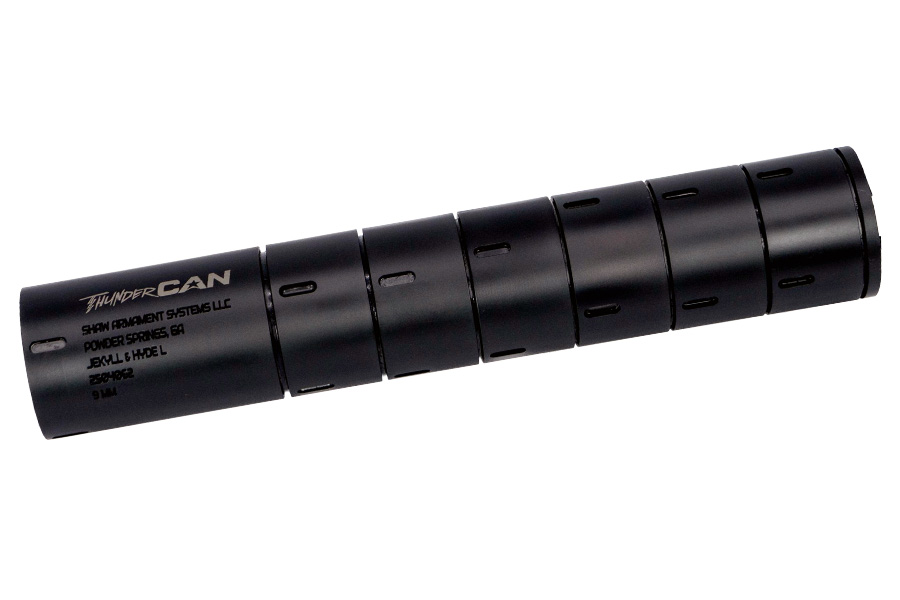

Jekyll & Hyde Large 9/50 Rifle Modular Suppressors
LENGTH: 9.0 in (no mount)
DIAMETER: 1.62 in
WEIGHT: 15.8 oz (no mount)
CALIBER: Small Bore - Up to 9mm diameter, 338 Lapua Magnum Pressure; Large Bore – Up to .50 diameter, 338 Lapua Magnum Pressure (No 50 BMG)
MATERIAL CONSTRUCTION: Grade 5 Titanium and 17-4 Stainless Steel
FINISHES: Satin Bead Blast, DLC
BARREL RESTRICTIONS: 5.56 - 10”, .308 - 14.5”, Large Magnum - 18”
DURABILITY: Limited Full Auto
MOUNTS: HUB Compatible / Ships with 1/2x28 and 5/8x24 Direct Thread Mounts
THUNDERCAN MODULAR SUPPRESSORS
The ThunderCan Jekyll & Hyde line of modular suppressors is an innovative solution for a proper multi-caliber system.
The ThunderCan Jekyll & Hyde line of MICS (Modular Interchangeable Caliber Suppressors) is the first of its kind. It features not only the ability to alter the length but also the ability to swap calibers. Our carefully curated baffle design allows far more than a simple end-cap-only change, a larger bore, and claims to be multi-cal. Through a series of patents, we have officially created the perfect solution for a proper multi-caliber system. It features two large designs from 556-9mm and 9mm-50 (not BMG) and tested on a 338 Lapua Mag. These hard-use suppressors fit everything you have and are what you have been waiting for!
MODULAR. MULTI-BAFFLE. MULTI-CALIBER.
All Jekyll and Hyde modular suppressors utilize a revolutionary patented system. Comprised of 3 individual suppressors in this series, the Rimfire S is tuned to suppress small calibers, the Pistol M - all standard handgun calibers, and the Rifle L has two variants to accommodate almost any caliber.
Each modular suppressor contains a baffle design to meet the performance needs of the calibers you shoot. You use each module with the small stainless steel cover baffle inserted when shooting smaller calibers. When shooting larger calibers, all you do is remove the small baffle from each module. Jekyll and Hyde modular suppressors follow the calibers you shoot, adjust to the length you need, and maintain performance throughout.
