Jekyll & Hyde Large 9MM/50 Suppressor Resources

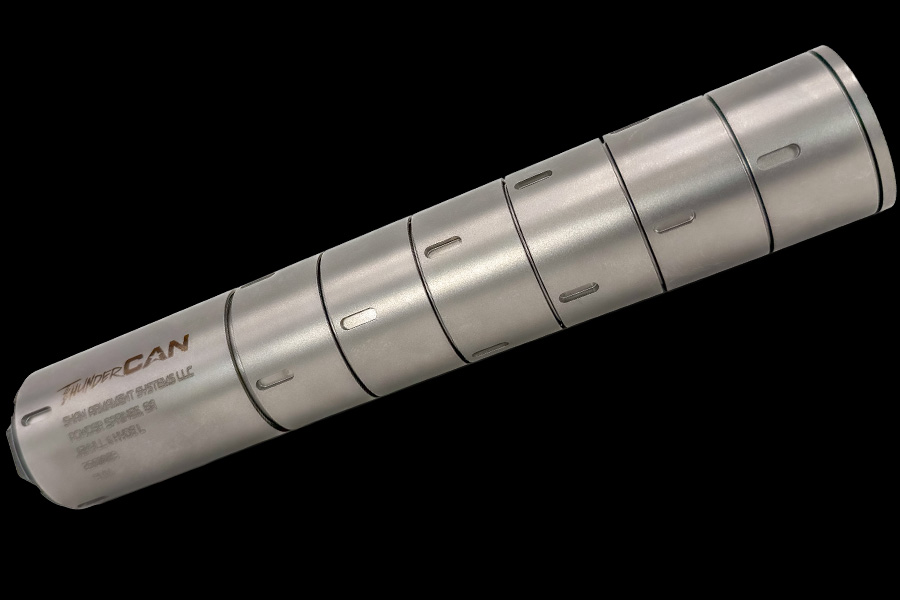

Thank you for considering or purchasing the Shaw Armament Systems ThunderCan Jekyll & Hyde Large 9MM/50 Suppressor.
The Shaw Armament Systems ThunderCan Jekyll & Hyde series offers the ultimate in suppressor modularity. Utilizing patented dual baffle technology, each Jekyll & Hyde suppressor can be assembled in a small and large bore configuration. This allows the end user to tailor the baffle stack to the diameter of the host weapons projectile, enhancing suppression efficiency and producing better sound reduction performance. Each Jekyll and Hyde suppressor is also length modular. The end user can shorten the suppressor to fulfill the need for a more compact suppressor or leave it full length for maximum sound reduction. No matter the host, the Jekyll and Hyde series delivers premium performance tailored to a wide variety of platforms.
Below are resources and instructions to help you understand and keep your new ThunderCan Suppressor functioning at its peak performance.
SPECIFICATIONS
LENGTH: 9.0 in (no mount)
DIAMETER: 1.62 in
WEIGHT: 15.8 oz (no mount)
CALIBER: Small Bore - Up to 9mm diameter, 338 Lapua Magnum Pressure; Large Bore – Up to .50 diameter, 338 Lapua Magnum Pressure (No 50 BMG)
MATERIAL CONSTRUCTION: Grade 5 Titanium and 17-4 Stainless Steel
FINISHES: Satin Bead Blast, DLC
BARREL RESTRICTIONS: 5.56 - 10”, .308 - 14.5”, Large Magnum - 18”
DURABILITY: Limited Full Auto
MOUNTS: HUB Compatible / Ships with 1/2x28 and 5/8x24 Direct Thread Mounts
DISASSEMBLY & ASSEMBLY OF YOUR THUNDERCAN SUPPRESSOR
A step-through guide on how to disassemble your Thundercan Suppressor.
CLEANING YOUR SUPPRESSOR
How to clean your ThunderCan suppressor.
LIFETIME WARRANTY
SAS provides a limited lifetime warranty against all manufacturing defects on all products manufactured by SAS. Warranty Information.
QUESTIONS?
Contact Shaw Armament Systems or 678-915-2075, M-F: 9 am-5 pm.
COMPONENTS OF YOUR THUNDERCAN JEKYLL & HYDE LARGE 9MM/50 SUPPRESSOR
Use the assembly drawings to identify components and understand maintenance and servicing steps.
