Mini Beast 22 Suppressor Resources

Thank you for considering or purchasing the Shaw Armament Systems ThunderCan Mini Beast 22 Suppressor.

The Shaw Armament Systems ThunderCan Mini Beast 22 is a versatile 22 rimfire suppressor delivering high end decibel reduction in a lightweight package. Constructed of a combination of aluminum and titanium, this suppressor has strength where needed to handle magnum rimfire cartridges, while maintaining a minimal effect on handling characteristics of the host platform. By employing a true baffle stack and not a mono-core design, the suppressor has reduced first round pop and a great tone from first shot to last. The Mini Beast 22 is a fully user serviceable suppressor with trouble-free disassembly for regular maintenance and cleaning. A cleaning interval of 500 to 1000 rounds (depending on ammo used) is recommended.

Below are resources and instructions to help you understand and keep your new ThunderCan Suppressor functioning at its peak performance.

SPECIFICATIONS

LENGTH: 6.1 in
DIAMETER: 1.00 in
WEIGHT: 4.9 oz
CALIBER: 22 LR, 17 HMR, 22 Magnum
MATERIAL CONSTRUCTION: Grade 5 Titanium, 7075-T6 Aluminum
FINISHES: Black High Temp C Series Cerakote, Black Type III Hardcoat Anodizing
BARREL RESTRICTIONS: None
DURABILITY: Limited Full Auto
MOUNTS: 1/2x28 Direct Thread Rear Mount

DISASSEMBLY & ASSEMBLY OF YOUR THUNDERCAN SUPPRESSOR

A step-through guide on how to disassemble your Thundercan Suppressor.

CLEANING YOUR SUPPRESSOR

How to clean your ThunderCan suppressor.

LIFETIME WARRANTY

SAS provides a limited lifetime warranty against all manufacturing defects on all products manufactured by SAS. Warranty Information.

QUESTIONS?

Contact Shaw Armament Systems or 678-915-2075, M-F: 9 am-5 pm.

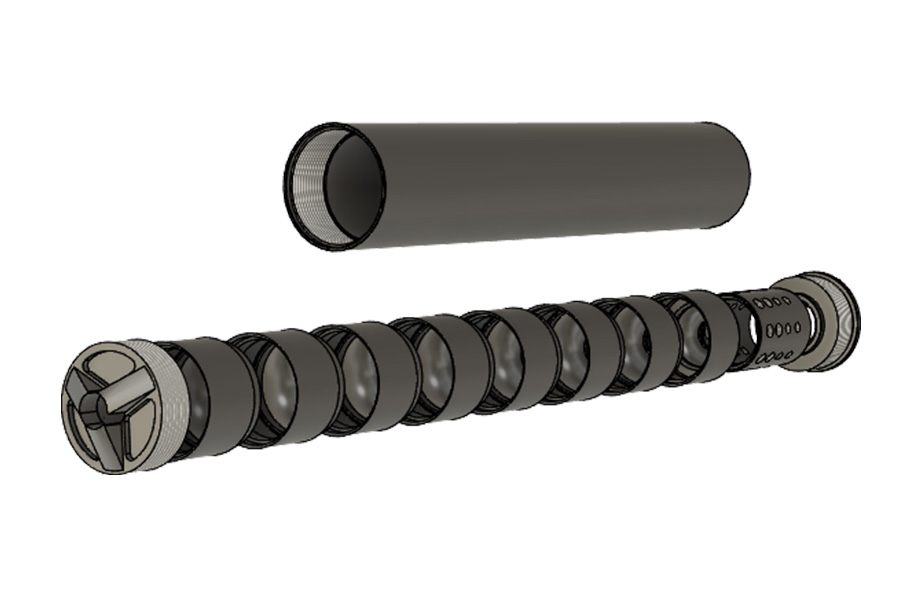

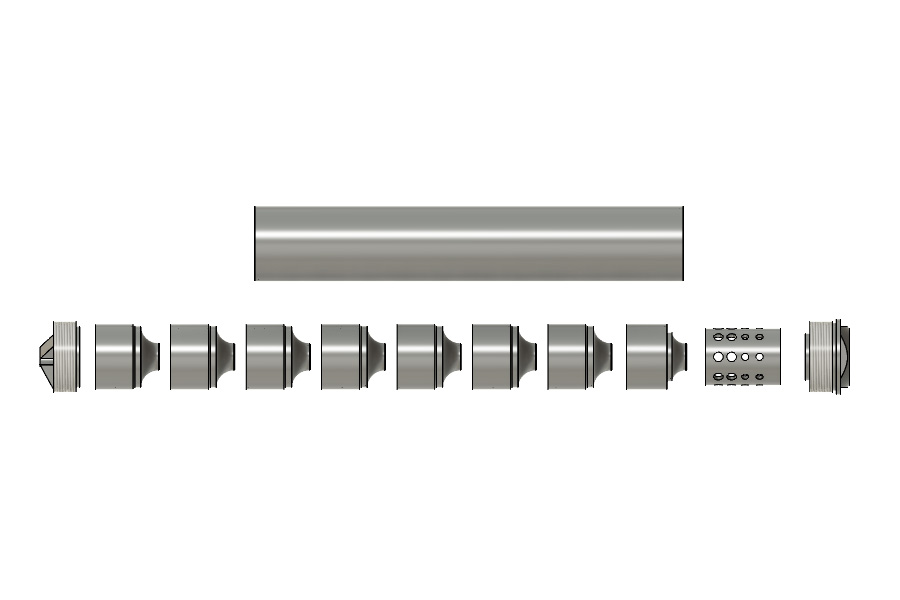

COMPONENTS OF YOUR THUNDERCAN MINI BEAST 22 SUPPRESSOR
Use the assembly drawings below to identify components and understand maintenance/servicing steps.
