MK9 Suppressor Resources

Thank you for considering or purchasing the Shaw Armament Systems ThunderCan Hellion 45 Suppressor.

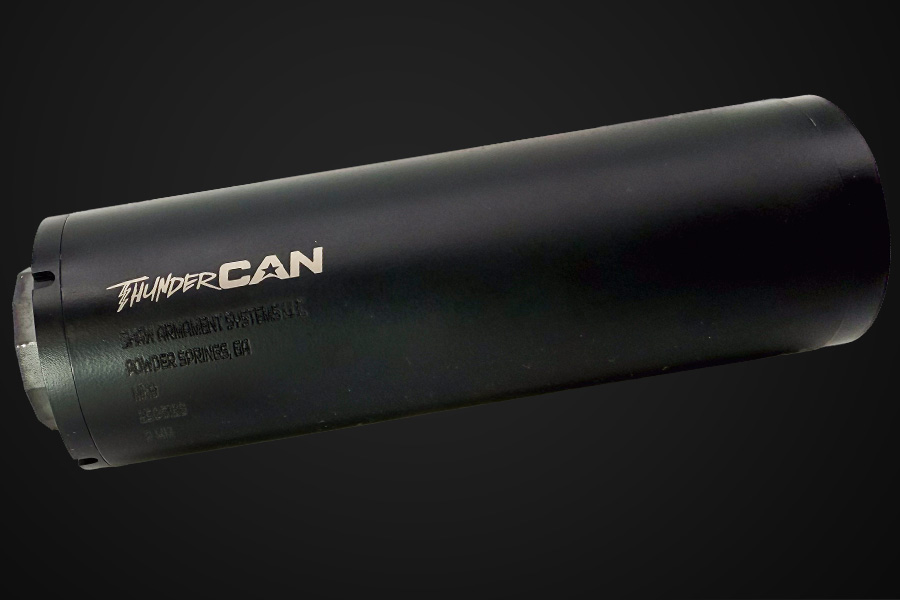

The Shaw Armament Systems ThunderCan MK9 is our homage to the classic Gemtech Mk9-K, with our own ThunderCan twist. It is the ultimate in performance for any 9mm carbine, delivering outstanding sound level reduction in a compact length. With a core that is smaller in diameter than the tube, the coaxial vented blast chamber takes advantage of additional volume around the baffle stack for gas expansion out of the muzzle, reducing first round pop and back pressure. The patented modular hybrid core design utilizes a “sandwiched baffle” concept, with the core components manufactured of dissimilar materials that cannot be traditionally welded, threaded together. This allows the extensive use of titanium for weight reduction, and stainless steel where extreme erosion resistance of the bore aperture is desired. As a by-product of this design, the MK9 is a fully user serviceable suppressor for maintenance and cleaning that can handle as much full auto fire as any end user can throw at it. It is hands down one of the best SMG cans available today.

Below are resources and instructions to help you understand and keep your new ThunderCan Suppressor functioning at its peak performance.

SPECIFICATIONS

LENGTH: 6.2 in
DIAMETER: 2.00 in
WEIGHT: 15.5 oz (no mount)
CALIBER: 9mm, 300 Blackout Subsonic, 8.6 Blackout, 338 ARC Subsonic
MATERIAL CONSTRUCTION: Grade 5 Titanium, 17-4 Stainless Steel
FINISHES: Black High Temp C Series Cerakote
BARREL RESTRICTIONS: 9mm – None, 300 Blackout, 8.6 Blackout, 338 ARC – 8” (Subsonic Only)
DURABILITY: Full Auto Rated
MOUNTS: HUB/Original Mk9-k Mount Compatible / Ships with 1/2x28 Direct Thread Mount

DISASSEMBLY & ASSEMBLY OF YOUR THUNDERCAN SUPPRESSOR

A step-through guide on how to disassemble your Thundercan Suppressor.

CLEANING YOUR SUPPRESSOR

How to clean your ThunderCan suppressor.

LIFETIME WARRANTY

SAS provides a limited lifetime warranty against all manufacturing defects on all products manufactured by SAS. Warranty Information.

QUESTIONS?

Contact Shaw Armament Systems or 678-915-2075, M-F: 9 am-5 pm.

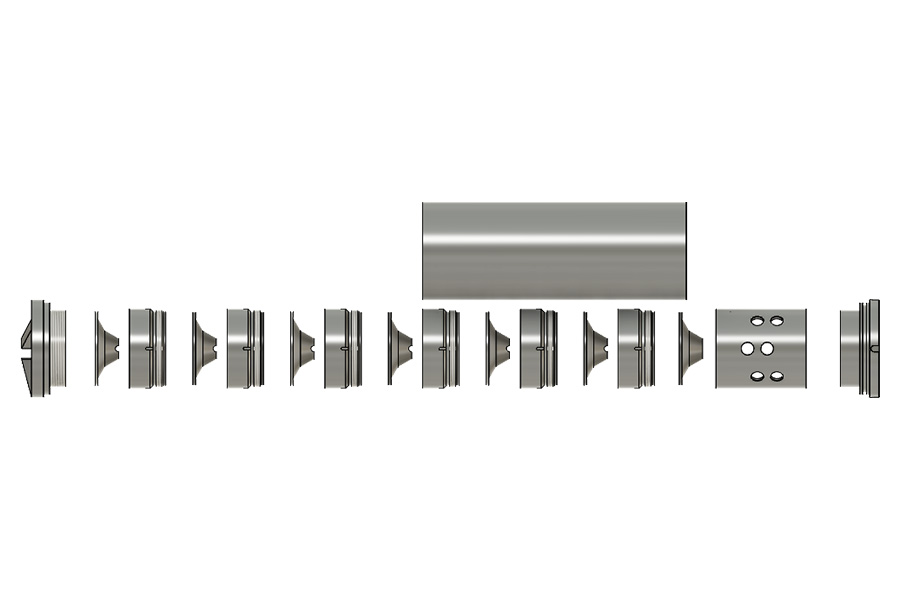

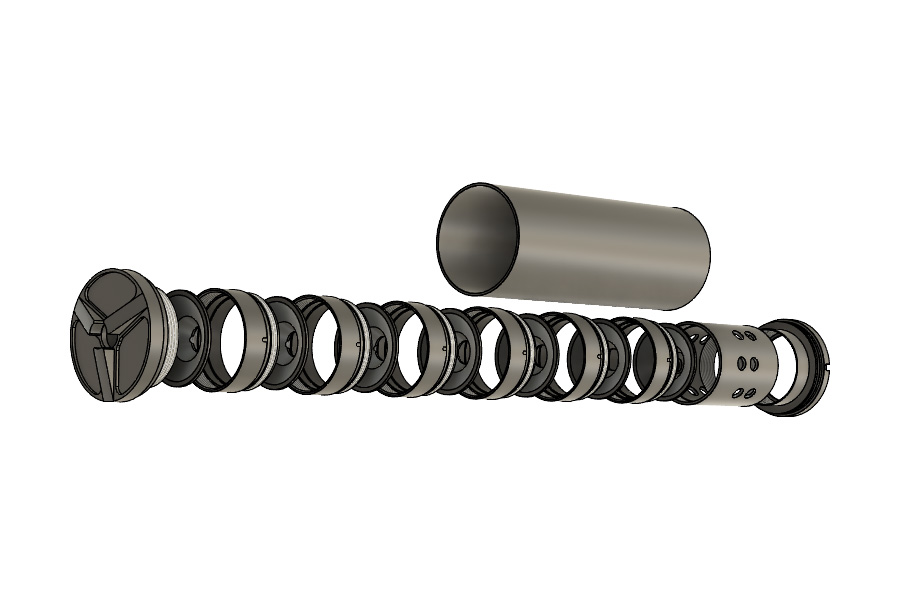

COMPONENTS OF YOUR THUNDERCAN MK9 SUPPRESSOR
Use the assembly drawings to identify components and understand maintenance and servicing steps.
